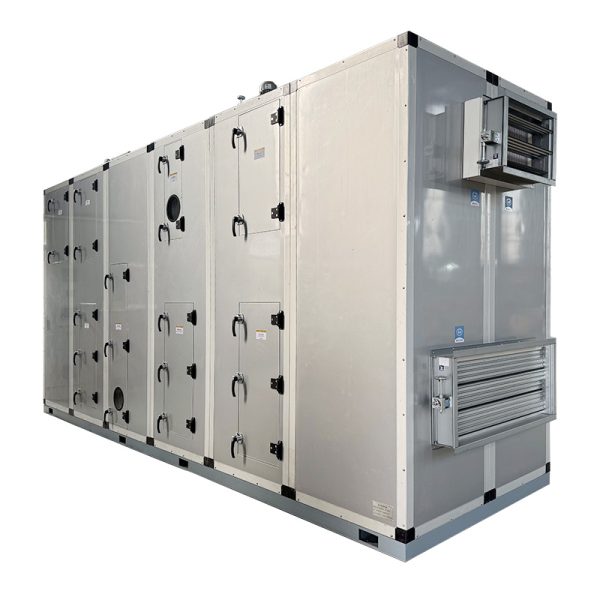

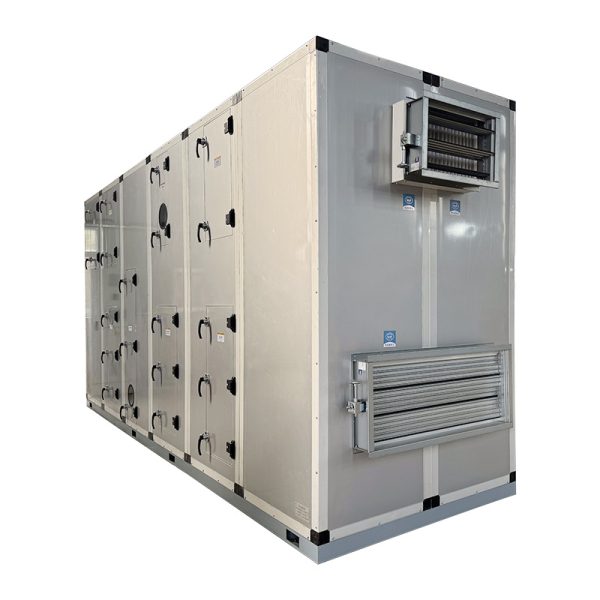

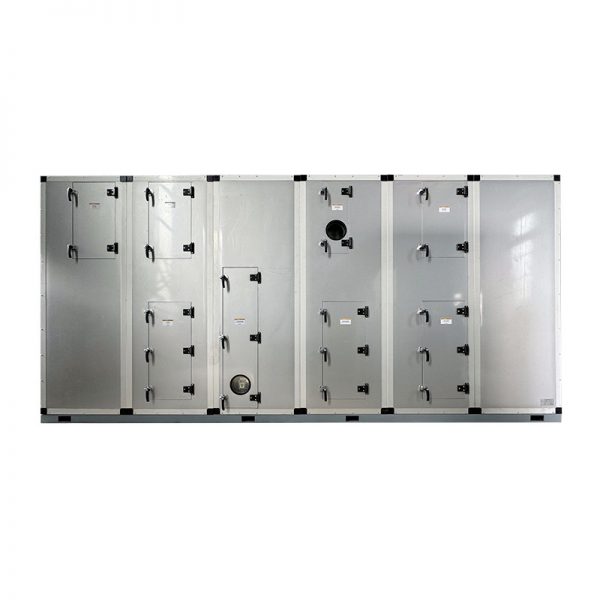

AHU120D Series Rotary Dehumidifier Unit

Highly Efficient And Energy-Saving Rotor Dehumidifieru
Nique Internal Frame Structure With Integrated Foaming Design Toprevent Cold Bridging.
Plc Control System For Easy Operation And Real-Time Monitoring Ofoperating Conditions.
Larger Maintenance Space Design For Quick And Convenient Servicing.
Imported High-Efficiency Rotor With Antibacterial And Flame-Retardant Properties.
Adjustable Air Valves For Both Process And Regeneration Airflow.
Adjustable Front And Rear Water Valves For Optimal Performance.
Two Heating Options Available: Electric Heating Or Steam Heating.
Bottom Channel Steel Design For Easy Handling And Transportation.

Detail

Steam regeneration conventional unit

Model	Air volume(m* /h)	A	B	H	H1	C	H2	H3	D	H4	H5
YH-AHD40D	4000	2000	1550	1550	≤700	1000	250	500	1000	250	500
YH-AHD5OD	5000
YH-AHD6OD	6000
YH-AHD8OD	8000	2000	1900	2000	≤950	1200	400	1000	1200	400	1000
YH-AHD120D	12000
YH-AHD150D	15000	2500	2300	2240	≤1200	1600	400	1200	1600	400	1200
YH-AHD180D	18000
YH-AHD200D	20000

Electric regeneration conventional unit

Model	Air Volume (m³/h)	A	B	H	H1	C	H2	H3	D	H4	H5
YH-AHD10D	1000	2000	1350	1350	≤700	800	250	500	800	250	500
YH-AHD15D	1500
YH-AHD30D	3000
YH-AHD40D	4000	2000	1550	1550	≤700	1000	250	500	1000	250	500
YH-AHD50D	5000
YH-AHD60D	6000
YH-AHD80D	8000	2000	1900	2000	≤850	1200	400	1000	1200	400	1000
YH-AHD120D	12000
YH-AHD150D	15000	2500	2300	2240	≤850	1600	400	1200	1600	400	1200
YH-AHD180D	18000
YH-AHD200D	20000

Note: The dimensions are for reference only. Please refer to the actual delivered unit. If there are any design changes, we will not notify you separately.

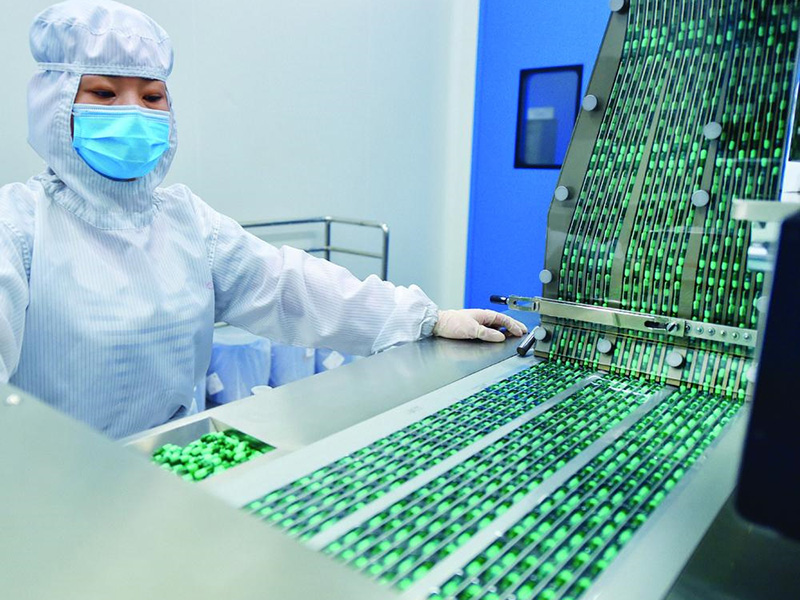

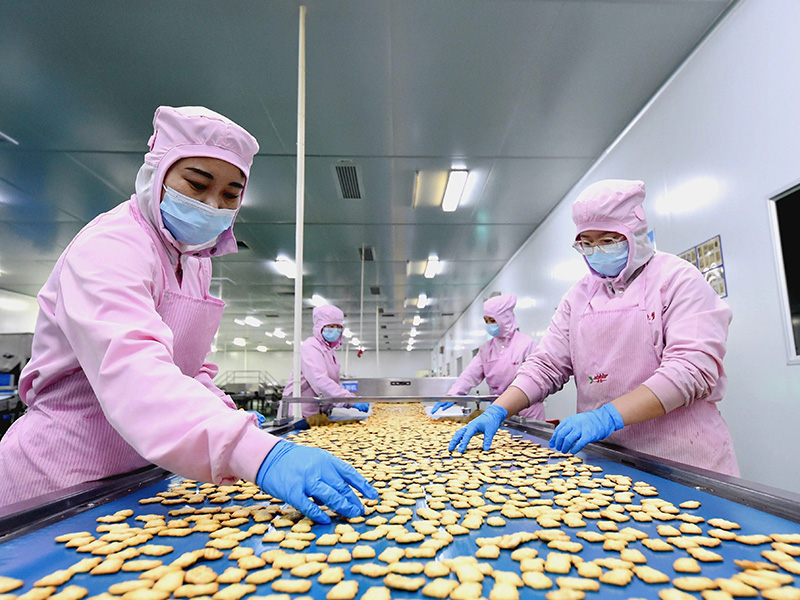

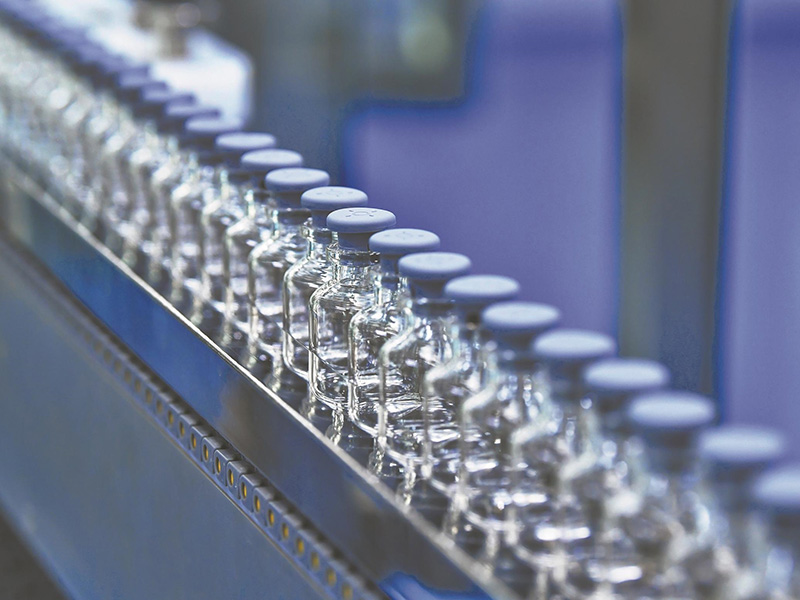

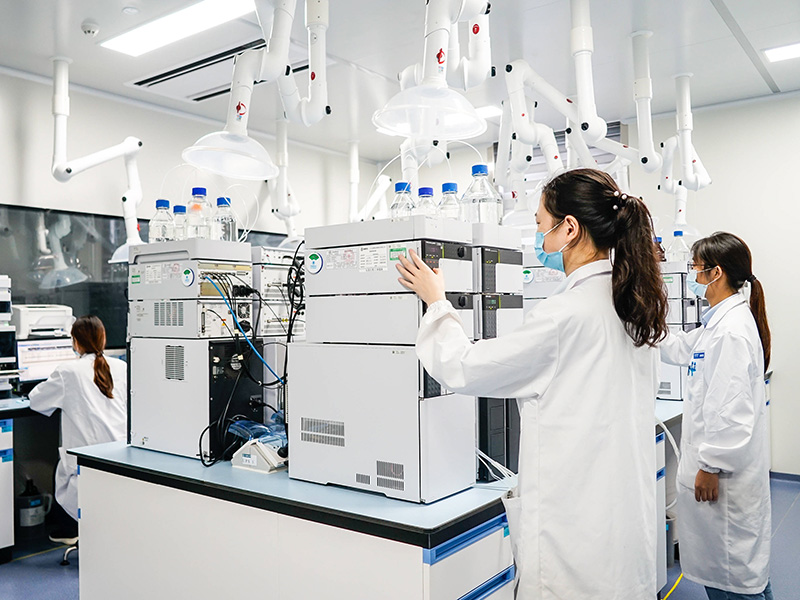

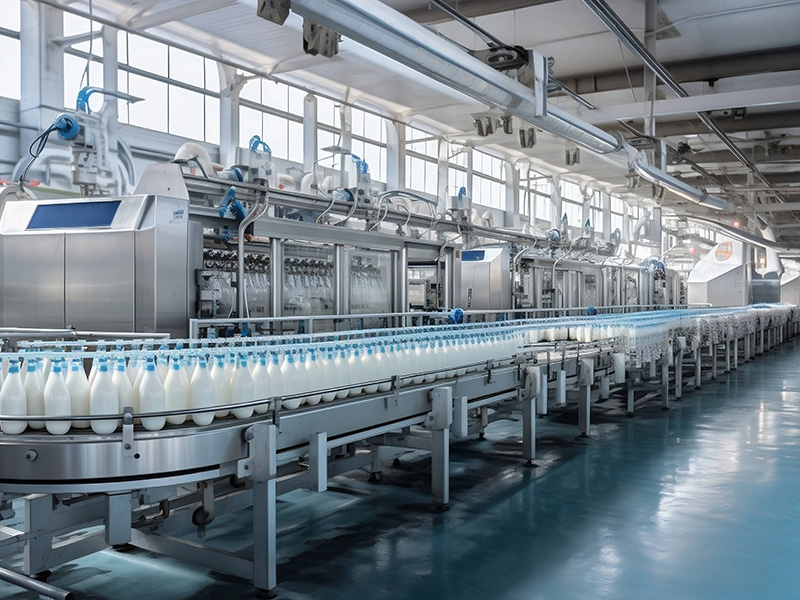

1.Food and pharmaceutical related industries

(1) Humidity/Process Requirements

Target Humidity Range: 40~50% RH

(2) Challenges

Large temperature and humidity fluctuations

Slow humidity control response

(3) Solutions

Optimal model selection and solution
Precise temperature and humidity control
Rapid response to provide a stable process environment

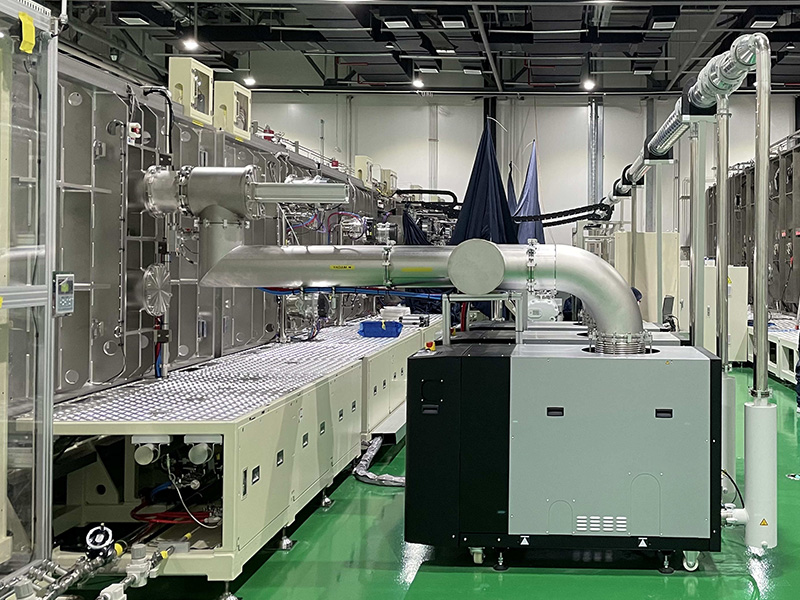

2.Precision Casting (Photovoltaic Cells) Related Industries

(1) Humidity/Process Requirements

Target Humidity Range: 10~40% RH

(2) Challenges

Severe energy waste with conventional rotor dehumidification.
Difficulty in achieving the low humidity required for the process.
High regeneration exhaust temperature, leading to shorter rotor lifespan.
