MAXIMUM HEIGHT:5MM

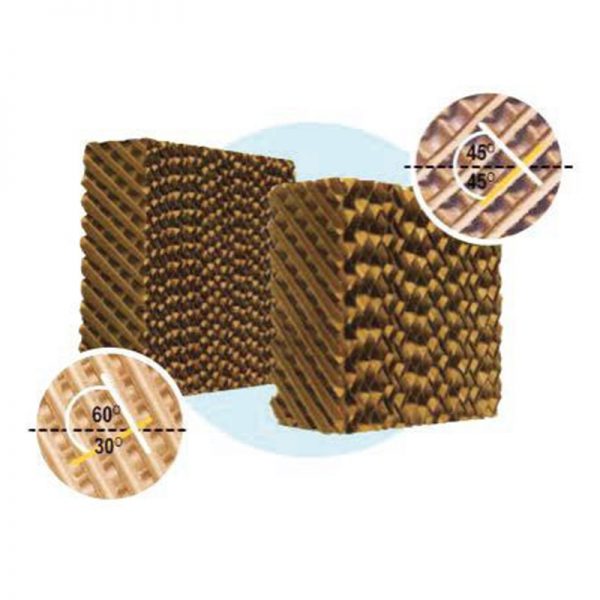

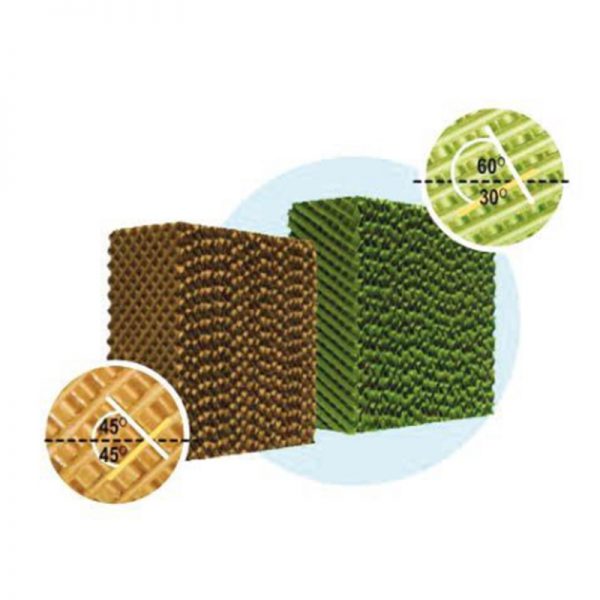

0590-45/45 CROSS ANGLES:A=45°,B=45°
0590-60/30 CROSS ANGLES:A=60°,B=30°
EVAPORATION AREA(PERM3):690 SM3
STANDARD EFFICIENCY:97%
STANDARD PRESSURE DROP:44 PA

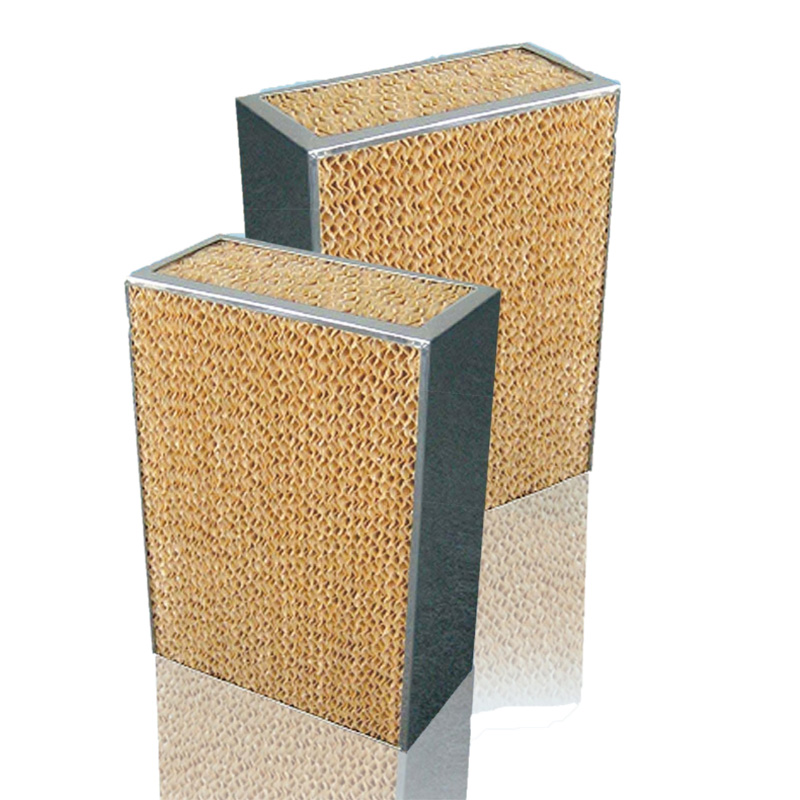

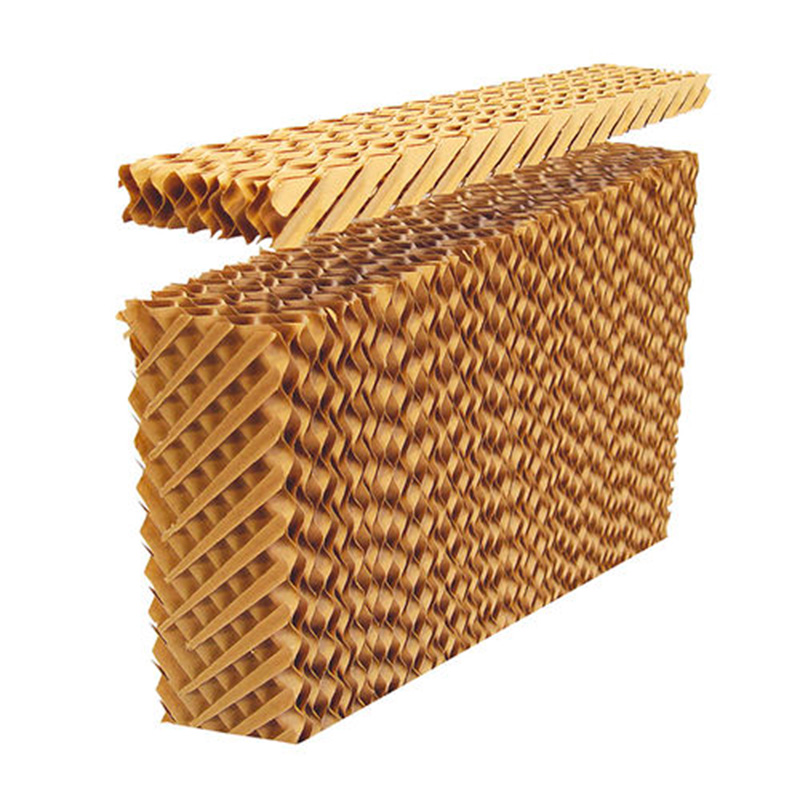

The inorganic water curtain panel is made from specially impregnated glass fiber material,offering exceptionalmoisture absorption capabilities.It ensures continuous humidification and evaporative cooling effects even athigh surface speeds.
The special inorganic compounds in the water curtain panel provide hygienic and fireproof properties.Thenon-combustible inorganic water curtain panel fully complies with stringent building and industrial regulations.The inorganic water curtain panel serves as an ideal medium for post-humidification in air handling units andheaters.It is particularly suitable for cooling systems in large data center server rooms and as a pre-cooler forgas turbine generator intakes.
